Inconel Alloy 600 Foil
Inconel Alloy 600 Strip Manufacturer in China

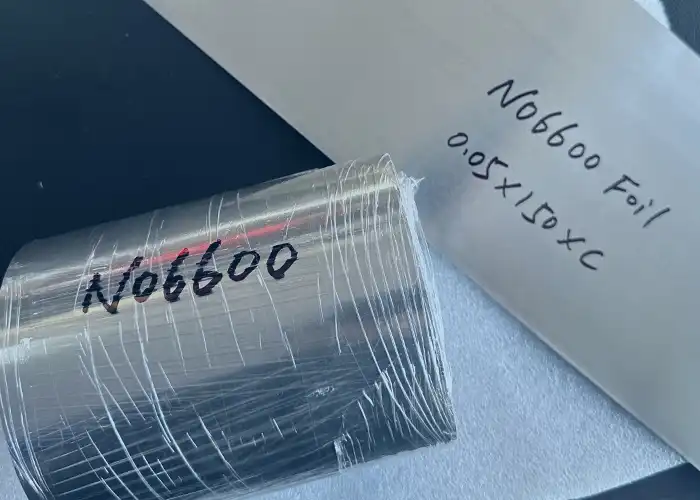

Inconel alloy 600 foil is also called as UNS N06600 / W.Nr. 2.4816 nickel alloy foil. We produce Inconel alloy 600 nickel alloy foils in a range of sizes.
This foil is widely used for its excellent resistance to high-temperature corrosion. As a solid-solution strengthened alloy, Inconel 600 can only be hardened through cold working.
We manufacture Inconel 600 foils in compliance with ASTM B168 standards, using a high-precision cold rolling mill to ensure accurate dimensions. If your project requires tight tolerances, we can meet those specifications. For widths below 200mm, we offer competitive pricing and reduced delivery times.
Inconel Alloy 600 Strip Specifications
| Product Name | Inconel Alloy 600 Foil |
| Grades | Inconel 600 |
| Hardness | 70-90HRB |
| Thickness | 0.02mm-0.1mm |
| Width | 1.0mm-350mm |
| Edge | Slit/Deburred/Round |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø 200mm, Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core on customer request |
| Surface Finish | The alloy strip foil has a smooth surface, free from scratches and impurities |
| Applications | See Below Information |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 15-20 working days |
| MOQ | 500 kgs |
| Shipping Port | Shanghai/Ningbo port |
| Sample | The sample of nickel alloy strip foil is available |
| Remark | Nickel alloy strip foil can be customized |
Inconel Alloy 600 Foil Chemical Compositions
| Grade | Standard | C | Si | Mn | Cu | S | Cr | Ni | Fe |
| Inconel 600 | ASTM B168 | ≤0.15 | ≤0.50 | ≤1.00 | ≤0.50 | ≤0.015 | 14.00-17.00 | ≥72.00 | 6.0-10.0 |
Inconel Alloy 600 Foil Mechanical Properties
| Element | Yield Strength (0.2%Offset) | Melting Point | Density | Tensile Strength | Elongation |
| 600 | MPa – 240 | 1413 °C (2575 °F) | 8.47 g/cm3 | MPa – 1550 | Min 30 % |
Inconel Alloy 600 Foil Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Inconel 600 | 2.4816 | N06600 | – | – | – | – | – | – |
Inconel Alloy 600 Foil: The Ultimate Guide
When you choose to buy quality Inconel Alloy 600 foil, there have some important points we need to know before we get started.
What are Inconel Alloy 600 Foils?
INCONEL (nickel-chromium-iron) alloy 600 (UNS N06600 / W.Nr. 2.4816) strip is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability.
The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hardenable; it is hardened and strengthened only by cold work.
The versatility of INCONEL alloy 600 has led to its use in a variety of applications involving temperatures from cryogenic to above 2000°F (1095°C).
Inconel Alloy 600 Foil applications
The alloy is used extensively in the chemical industry for its strength and corrosion resistance. Applications include heaters, stills, bubble towers and condensers for processing of fatty acids; evaporator tubes, tube sheets and flaking trays for the manufacture of sodium sulfide; and equipment for handling abietic acid in the manufacture of paper pulp.
The alloy’s strength and oxidation resistance at high temperatures make it useful for many applications in the heat-treating industry. It is used for retorts, muffles, roller hearths and other furnace components and for heat-treating baskets and trays.
In the aeronautical field, alloy 600 is used for a variety of engine and airframe components which must withstand high temperatures. Examples are lockwire, exhaust liners and turbine seals. The alloy 600 is used in the electronic field for such parts as cathode-ray tube spiders, thyratron grids, tube support members and springs.
The alloy is a standard material of construction for nuclear reactors.
What is the standard sea packaging of Inconel Alloy 600 Foil?
- Standard export sea packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
Eye to wall and eye to sky are both available; - By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
