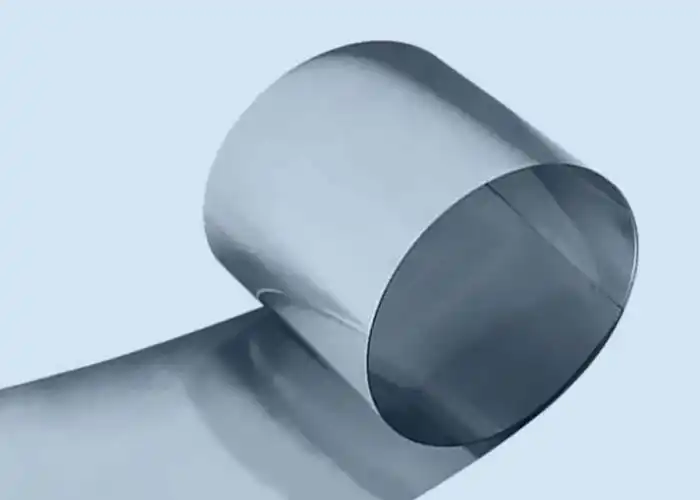

Inconel Alloy 600 Coil
Inconel Alloy 600 Coil Coil Supplier In China
As the professional nickel alloy coils supplier in China, we manufactures and produces customized thickness and width inconel alloy 600 coils.
INCONEL® (nickel-chromium-iron) alloy 600 (UNS N06600 / W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability.
Inconel Alloy 600 Coil Specifications
| Product Name | Inconel alloy 600 coil |
| Grades | Alloy 600 |
| Standards | ASTM/DIN/JIS/GB/T |
| Thickness | 0.10mm-5.0mm |
| Width | 5mm-1200mm |
| Edge | Slit/Round |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø 150mm,Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core on special request |
| Surface Finish | Mill/Bright/TR/Polishing/Annealing |
| Applications | Nickel alloys coils are ideally suited for a wide range of industries that require high-performance materials, including aerospace, marine, chemical processing, nuclear power generation and oil&gas production |
| Packaging | Wooden pallet/Wooden case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 7-10 working days |
| MOQ | 2,000 Kgs |
| Shipping Port | Shanghai/Ningbo port |
| Sample | The sample of nickel alloy coil is available |
| Remark | Nickel alloy coil can be customized |
Inconel Alloy 600 Coil Chemical Compositions
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Fe |
| Inconel 600 | ASTM | ≤0.15 | ≤0.50 | ≤1.00 | / | ≤0.015 | 14.00-17.00 | ≥72.0 | 6.0-10.0 |
Inconel Alloy 600 Coil Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2575 °F) | 550-1170Mpa | 170-1100Mpa | 55% – 2% |
Inconel Alloy 600 Coil Equivalent Grades
| STANDARD | 600 |
| WERKSTOFF NR. | 2.4816 |
| UNS | N06600 |
Inconel Alloy 600 Coil: The Ultimate Guide
When you choose to buy quality inconel alloy 600 coils, there have some important points we need to know before we get started.
What are Inconel Alloy 600 Coils?
INCONEL® (nickel-chromium-iron) alloy 600 (UNS N06600 / W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability.
The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hardenable; it is hardened and strengthened only by cold work.
The versatility of INCONEL alloy 600 has led to its use in a variety of applications involving temperatures from cryogenic to above 2000°F (1095°C).
The alloy is used extensively in the chemical industry for its strength and corrosion resistance. Applications include heaters, stills, bubble towers and condensers for processing of fatty acids; evaporator tubes, tube sheets and flaking trays for the manufacture of sodium sulfide; and equipment for handling abietic acid in the manufacture of paper pulp.
Inconel Alloy 600 Coil applications
The alloy is used extensively in the chemical industry for its strength and corrosion resistance. Applications include heaters, stills, bubble towers and condensers for processing of fatty acids; evaporator tubes, tube sheets and flaking trays for the manufacture of sodium sulfide; and equipment for handling abietic acid in the manufacture of paper pulp.
The alloy’s strength and oxidation resistance at high temperatures make it useful for many applications in the heat-treating industry. It is used for retorts, muffles, roller hearths and other furnace components and for heat-treating baskets and trays.
In the aeronautical field, INCONEL alloy 600 is used for a variety of engine and airframe components which must withstand high temperatures. Examples are lockwire, exhaust liners and turbine seals. INCONEL alloy 600 is used in the electronic field for such parts as cathode-ray tube spiders, thyratron grids, tube support members and springs.
The alloy is a standard material of construction for nuclear reactors. It has excellent resistance to corrosion by high-purity water, and no indication of chloride-ion stress-corrosion cracking in reactor water systems has been detected. For nuclear applications, the alloy is produced to exacting specifications and is designated INCONEL alloy 600T.
