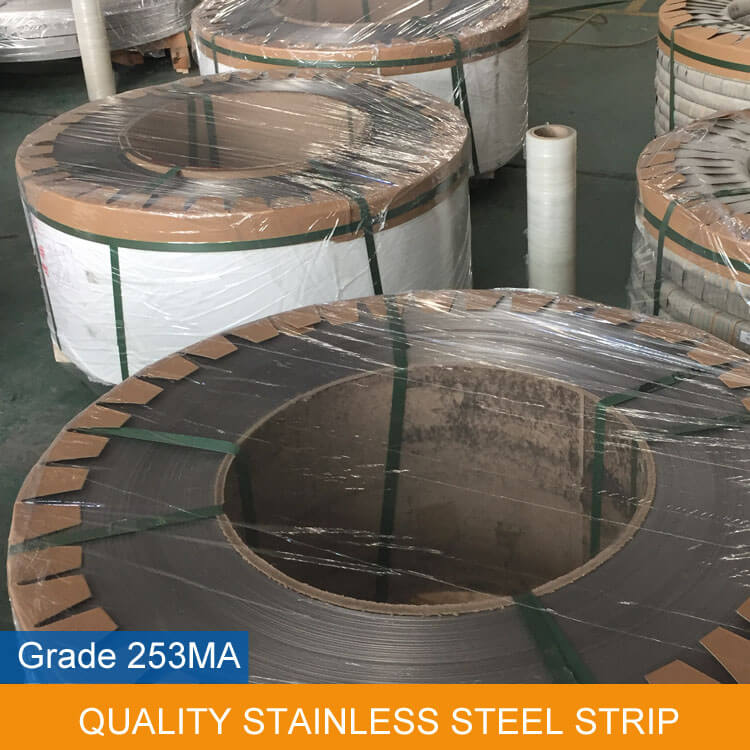

253 MA® Stainless Steel Strip

253 MA® Stainless Steel Strip Introductions

What Is 253 MA® Stainless Steel Strip

253 MA® stainless steel strip is a heat-resistant austenitic stainless steel strip.

It is designed for applications that require high creep strength and good corrosion resistance. 253 MA® is a registered trademark of Outokumpu OYJ.

The operating temperature range is from 900 degree to 1150 degree.

253 MA® stainless steel is added rare earth elements based on Cr21-Ni11 grade to achieve the purpose of improving the high-temperature service performance of steel.

Compared with the common 310S stainless steel strip, the performance of 253 MA® stainless steel strip is superior, Nickel saving and cheaper price.

Specifications

  1. Standard: ASTM UNS S30815/EN 1.4835
  2. Thickness: 0.10mm-3.0 mm
  3. Width: 2mm-600 mm
  4. Length: coil type or it can be produced as customer requirements
  5. Surface Finish: NO.1, 2B, 2H(Rerolled Bright), BA, No.4, 8K (Mirror), HL (Hairline), Polishing Bright, etc
  6. Edge: Mill Edge, Slit Edge, Deburred Edge, Round Edge, V Type Edge

Applications

Due to high creep strength, heat resistance and good corrosion resistance, quality grade 253 MA® stainless steel strip is widely used for below applications.

  • Sintering equipment
  • Blast furnace equipment
  • Steel melting
  • Furnace and continuous casting equipment
  • Rolling mill (heating furnace)
  • Heat treatment furnace and accessories
  • Mineral equipment and cement production equipment
  • Non-pressure high temperature parts
253ma-stainless-steel-strip-applications​

Chemical Composition

The chemical components of grade 253 MA® stainless steel strip is summarized in the following table:

GradeStandardCSiMnPSCrNiCe
UNS S30815 ASTM≤0.10≤2.00≤0.80≤0.040≤0.03020.00-22.0010.00-12.000.03-0.08

Mother Coil Mechanical Property

Below The Table Is For Your Reference:

GradeStandard
Yield Strength
Rp0.2 (N/mm²)
Tensile Strength
Rm (N/mm²)
Elongation %

Hardness
(HV)
Hardness
(HRB)
201ASTM A240
≥ 275
≥ 520
≥ 35
≤ 260
≤ 101
202ASTM A240
≥ 275≥ 520≥ 40≤ 218
≤ 95
301ASTM A240
≥ 205≥ 520≥ 40≤ 200≤ 90
304ASTM A240
≥ 205≥ 515
≥ 40≤ 210
≤ 92
304LASTM A240
≥ 205≥ 520
≥ 40≤ 200
≤ 90
316L
ASTM A240
≥ 177≥ 480
≥ 40≤ 200
≤ 90
316Ti
ASTM A240
≥ 205≥ 520
≥ 40≤ 200
≤ 90
317L
ASTM A240
≥ 205≥ 515
≥ 40≤ 218
≤ 95
309S
ASTM A240
≥ 205≥ 515≥ 40≤ 218≤ 95
310S
ASTM A240
≥ 205≥ 520
≥ 40≤ 200
≤ 90
321
ASTM A240
≥ 205≥ 520
≥ 40≤ 200
≤ 90
347
ASTM A240
≥ 205≥ 520
≥ 35≤ 200≤ 90
410S
ASTM A240
≥ 205≥ 440
≥ 20≤ 210
≤ 92
420J2
ASTM A240
≥ 225≥ 540
≥ 18≤ 180
≤ 80
430
ASTM A240
≥ 206≥ 450
≥ 22≤ 200
≤ 88
2205
ASTM A240
≥ 450≥ 620
≥ 25≤ 293
≤ 30
2507
ASTM A240
≥ 450≥ 620
≥ 25≤ 290
≤ 30
253 MA®ASTM
≥ 310≥ 600
≥ 40≤ 217
≤ 95
254 SMO®ASTM
≥ 300≥ 650
≥ 35≤ 223
≤ 96
654 SMO®ASTM
≥ 430≥ 750
≥ 40≤ 250
≤ 100
904L
ASTM
≥ 216≥ 490
≥ 35
≤ 90
UNS N08926ASTM
≥ 295≥ 650
≥ 35
≤ 100
UNS S17400ASTM ≥ 725≥ 930
≥ 10

Production Tolerance

Below The Table Is For Your Reference:

Thickness Tolerance:

Thickness(mm)
Width<125mm
125mm≤Width<250mm
250mm≤Width<600mm
≥0.03-0.10
±0.06T
±0.10T
±0.10T
≥0.10-0.15
±0.01
±0.015
±0.020
≥0.15-0.20
±0.015
±0.020
±0.025
≥0.20-0.25
±0.015
±0.020
±0.025
≥0.25-0.30
±0.018

±0.025
±0.030
≥0.30-0.40
±0.020±0.025
±0.030
≥0.40-0.50
±0.025
±0.030
±0.040
≥0.50-0.60
±0.030
±0.030
±0.040
≥0.60-0.80
±0.030
±0.040
±0.040
≥0.80-1.00
±0.030
±0.040

±0.050
≥1.00-1.20
±0.040
±0.050±0.050
≥1.20-1.50
±0.050
±0.060±0.060
≥1.50-2.00
±0.060
±0.070±0.070
≥2.00-2.50
±0.070
±0.070±0.080
≥2.50-3.00

±0.080
±0.080±0.090

Standard Sea Packaging

Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.

  • Standard export packaging:
    Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case;
  • Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
  • Other special packaging will be designed as customer’s request;
  • Eye to wall and eye to sky are both available;
  • By International Express: DHL/UPS/FEDEX/EMS and our own express line;
  • By air or By sea;
  • Shipping port: Shanghai, Ningbo or as your request.

What Are The Advantages of Cooperating With Us

Our factory owned advanced processing production lines which can support you 253 MA® stainless steel strip project with competitive price and good service. We have powerful manufacturing capability, our Twenty-high Roll Sendzimir Mill, Continuous Bright Annealing Oven, Tension Leveller, Slitting Machine Lines, Edge Trimmers and Packaging Lines.
We are able to support every different stainless steel strip regardless of the samples or mass production.

The-Advantages-of-Cooperating-With-Us​

Technical Support

Hard work of our quality control and technical engineers team guaranteed the stable quality and good service.

OEM/ODM Service Is Available

Our professional team are skilled at independent development and design. We are able to design, develop, produce and deliver your order according to your detailed requirements, samples or just an idea.

Flexible Payment Term Support

Sample order is available. For small sample orders, in order to save the bank charge for customers and seller, West Union, Money Gram are well recommended.
For mass production, normally our company need 50% TT deposit before new production, and the 50% TT balance payment before shipment.
