Both the Inconel 718 strip and the Inconel X-750 strip belong to the nickel superalloys strips, showcasing impressive attributes like exceptional corrosion resistance, robust strength, and remarkable heat tolerance.
These qualities set them apart from solid solution alloys, a distinction frequently discussed in accessible online articles covering their differences.
Nevertheless, in terms of comparing Inconel 718 and Inconel X-750 alloys strips, there’s a scarcity of comprehensive references available.
Within this blog article, we will thoroughly contrast these two alloys strips by delving into their chemical compositions, applications, and overall performance.
Let’s keep reading.
What is Inconel 718 Alloy Strip?
Inconel 718 alloy strip is a high-strength, corrosion-resistant nickel chromium strip material used at -423° to 1300°F temperature.
The age-hardenable alloy strip can be readily fabricated, even into complex end finished parts. Its welding characteristics, especially its resistance to postweld cracking, are outstanding.
Inconel 718 strips are slitted from mother coils.
At HZW, Our team can help provide round edge Inconel 718 strips to meet your special demands.

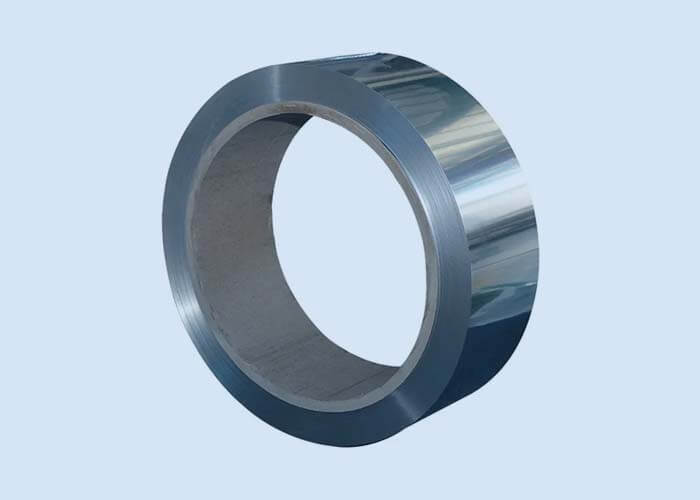

What is Inconel X-750 Alloy Strip?
Inconel X-750 alloy strip is a precipitation-hardenable nickel-chromium alloy strip used for its corrosion and oxidation resistance and high strength at temperatures to 1300°F.
Inconel X-750 alloy strip, also called Inconel X-750 narrow coil or Inconel X-750 alloy tape, is a kind of narrow and long nickel alloy plate material.
Inconel X-750 alloy strip has excellent corrosion resistance, high temperature resistance and fatigue resistance, and it also has good flexibility.
Inconel X-750 strips are slitted from mother coils.
At HZW, Our team can help provide round edge Inconel X-750 strips to meet your special demands.
What are the Differences Between Inconel Alloy 718 Strip and Inconel Alloy X-750 Strip?
As you can see from their introduction and products types, Inconel alloy 718 strip and X-750 strip are very different. Depending on what you are looking for in your project, they each have benefits and drawbacks. For a side by side comparison, you breakdown the differences even further.
Chemical Composition
Inconel 718 Alloy Strip Chemical Composition
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Ti |
| Inconel 718 | ASTM B 670, ASTM B 906, SAE AMS 5596 | ≤0.08 | ≤0.35 | ≤0.35 | ≤0.015 | ≤0.015 | 17.00-21.00 | 50.0-55.0 | 0.65-1.15 |
Inconel X-750 Alloy Strip Chemical Composition
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Ti |
| Inconel X-750 | AMS 5542 | ≤0.08 | ≤0.50 | ≤1.00 | ≤0.015 | ≤0.010 | 14.00-17.00 | ≥70 | 2.25-2.75 |
Corrosion Resistance
In comparison to Inconel X-750 strip, Inconel 718 strip possesses a higher chromium content.
As a result, Inconel 718 exhibits enhanced oxidation resistance when compared to Inconel X-750.
Furthermore, Alloy 718 includes molybdenum, a component absent in Alloy X-750. The incorporation of molybdenum serves to enhance the reduction corrosion resistance of Inconel 718.
Consequently, Inconel 718 strip outperforms Inconel X-750 strip across all facets of corrosion resistance.
Mechanical Properties
Inconel Alloy 718 Strip Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.19 g/cm3 | 1260 °C (2300 °F) | MPa – 960 | MPa – 550 | 30 % |
Inconel Alloy X-750 Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.28 g/cm3 | 1390 °C (2540 °F) | MPa – 910 | MPa – 550 | 25 % |
Applications
Inconel Alloy 718 Strip Applications
- Aerospace
- Automotive
- Marine
- Oil & Gas Industry
- Petro Processing
- Power & Energy
- Welding Products
Inconel Alloy X-750 Strip Applications
- Aerospace
- Automotive
- Oil & Gas Industry
- Petro Processing
- Power & Energy
Standards
Inconel Alloy 718 Strips Standards
Plate & Sheet, Foil & Strip: ASTM B670, ASTM B906, SAE AMS 5596, SAE AMS 5597, SAE AMS 5950
Inconel Alloy X-750 Strips Standards
Plate & Sheet, Foil & Strip: SAE AMS 5542, SAE AMS 5598
Price
While Inconel X-750 strip lags behind Inconel 718 strip in most aspects, the price discrepancy between them isn’t significantly substantial.
This can be attributed to Inconel 718’s lower nickel content and elevated iron content. These factors contribute to a reduction in the raw material expenses for the alloy.
Simultaneously, the widespread utilization of Inconel 718 results in a substantial supply, thereby lowering its incremental cost.
As a result, if your project is confronted with the decision between these two materials, our suggestion is to prioritize Inconel 718 strip. It not only boasts superior performance but also comes at an equivalent cost.
Conclusion
In summary, the Inconel 718 strip surpasses X-750 alloy strip in terms of overall performance. This is primarily due to its higher tensile strength both at room temperature and elevated temperatures.
At HZW, we offer prime quality Inconel 718 strip and Inconel X-750 strip materials renowned for their exceptional performance. If you require procurement, please don’t hesitate to get in touch with our expert team.
